ECC operates by generating a public key and a private key from a point on an elliptic curve. The private key is kept secret, while the public key is shared with others for encryption and decryption purposes. The security of ECC is based on the mathematical difficulty of computing the discrete logarithm of a point on an elliptic curve, which is much harder than factoring large numbers in RSA.

In ECC, two large finite fields (GF(p) and GF(q)) are used to define an algebraic curve called an "elliptic curve." The points on this curve represent elements in the field GF(q), which serve as cryptographic keys for encryption/decryption purposes. The mathematical properties of these curves, such as addition and doubling, provide a secure and efficient method for generating and manipulating these keys.

1. Elliptic Curves:

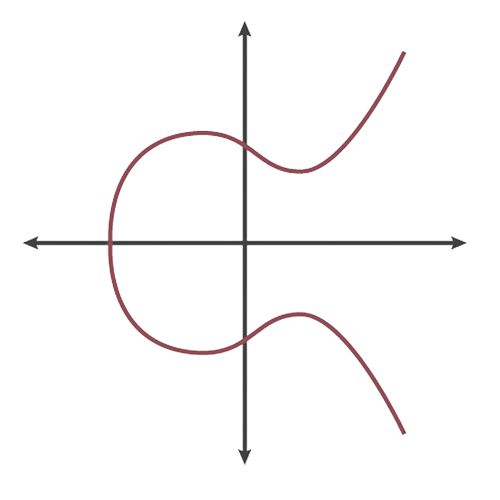

   An elliptic curve is a mathematical object defined by an equation of the form:

   y^2 = x^3 + ax + b (mod p)

   where p is a prime number, and a, b are constants. This equation represents a curve in a two-dimensional space over the finite field GF(p).

   The points on this curve are represented as (x, y), where x and y are elements of GF(p).

   The point at infinity (O) is also considered a point on the curve since it satisfies the equation y^2 = x^3 + ax + b.

2. Elliptic Curve Operations:
   1. Addition:

      The addition operation on an elliptic curve is defined as follows:

      Given two points P and Q on the curve, the sum P + Q is calculated as follows:

      • If P = Q, then the result is twice the point P (2P).
      • If P = O or Q = O, then the result is the other point.
      • If P ≠ Q, then the result is the point R such that R is the reflection of the line passing through P and Q with respect to the x-axis.
   2. Doubling:

      The doubling operation on an elliptic curve is defined as follows:

      Given a point P on the curve, the doubling of P is calculated as follows:

      • If P = O, then the result is the point O.
      • If P is not the point O, then the result is the point R such that R is the intersection of the line passing through P and the line passing through P and the point (-x(P), y(P)) on the x-axis.
3. Elliptic Curve Cryptography:

   ECC uses the mathematical properties of elliptic curves to generate and manipulate cryptographic keys. Here's a brief overview of the ECC process:

   1. Key Generation:
      • Choose a prime number p and a finite field GF(p).
      • Select an elliptic curve over GF(p).
      • Generate a private key (x) and a public key (Q) by calculating Q = xG, where G is a fixed point on the curve called the "base point."
   2. Encryption:
      • Choose a random value (k) and calculate R = kG.
      • Calculate S = (h(M) + x)k^-1 (mod p), where h(M) is a hash value of the message M.
      • The ciphertext is (R, S).
   3. Decryption:
      • Calculate k' = S^-1 (mod p).
      • Calculate R' = k'G.
      • Calculate h(M)' = h(M) + xk' (mod p).
      • If h(M)' = h(M), then the message M is recovered.

1. Advantages of ECC over traditional public-key cryptography
2. Shorter key lengths:

   ECC keys can be significantly shorter than RSA or Diffie-Hellman keys while still providing equivalent levels of security. For example, a 256-bit ECC key provides the same level of security as a 3072-bit RSA key.

3. Computational Efficiency:

   ECC operations are generally faster and more efficient than RSA or Diffie-Hellman operations, making them more practical for certain applications.

4. Greater resistance to side-channel attacks:

   ECC is less susceptible to side-channel attacks, such as timing attacks and power analysis attacks, than RSA or Diffie-Hellman.

5. Greater flexibility:

   ECC allows for more flexible key management and distribution, as keys can be derived from a single master key.

Conclusion

Elliptic Curve Cryptography (ECC) is a modern and efficient form of public-key cryptography that provides high levels of security with shorter key lengths and faster computations. Its mathematical properties provide a secure and efficient method for generating and manipulating cryptographic keys, making it an attractive option for resource-constrained devices and real-time applications. Its advantages make it a popular choice for various applications, including web communications, IoT devices, mobile devices, and government and military applications.
